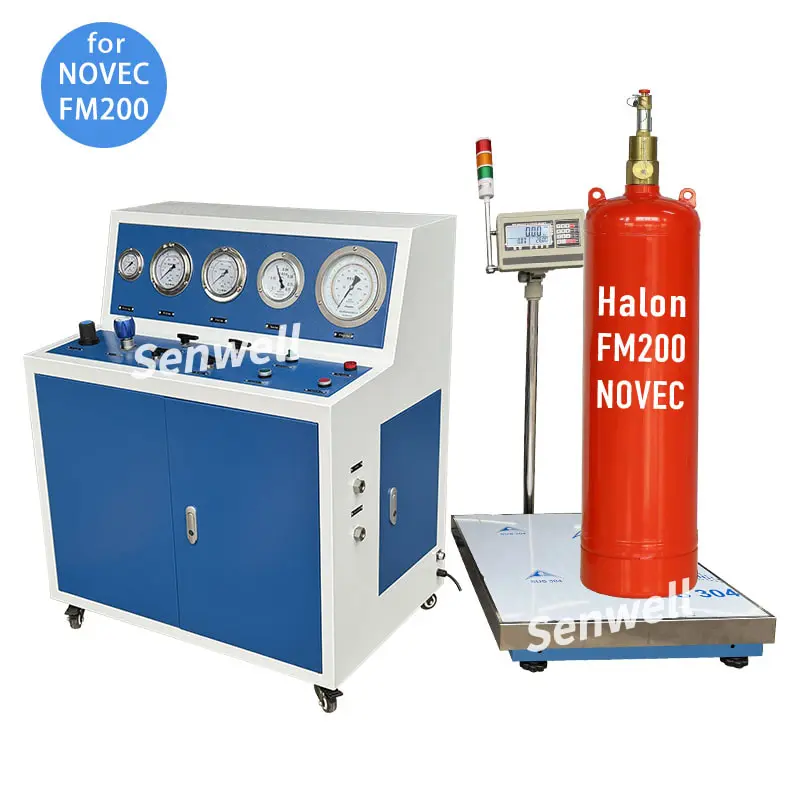

FK-5112 FM200 NOVEC Clean Agent Filling Machine

a NOVEC FM200 clean agent filling machine

A FM200 NOVEC clean agent charging machine

An automatic fire extinguishing agent filling equipment

The fire extinguishing clean agent filling machine is an automatic fire extinguisher refilling equipment for fire suppression system. And it can efficiently fill fire suppression agent FM-200 (HFC-227ea), NOVEC 1230, FK5112, Co2 and propellant gas (nitrogen) into fire extinguisher cylinders. FM200 NOVEC FK-5112 filling machine consists of vacuuming pump, clean agent filling pump, electronic scale, pressure gauges, control valves and electronic control unit. And the fire suppression agent filling machine integrates four functions of vacuuming fire extinguisher cylinder, refilling clean agent, filling nitrogen gas and automatic stop when full.

Clean Agent Filling Machine Benefits

Automatic clean agent charging machine integrated four functions
Efficiently refill fire extinguishing agent FM-200, NOVEC 1230, Co2
Preset a filling weight and automatic stop when full
Pressure reducing valve and precision pressure gauge equipped to monitor and charge nitrogen accurately

Clean Agent Refilling Machine Functions

Fill clean agent FM-200, NOVEC 1230, CO2 and propellant gas nitrogen into fire extinguisher cylinders.
Recycle clean agent from fire cylinders or fire suppression system.
Transfer clean agent and nitrogen mixture from a fire cylinder to others and then refill it during regular inspection of fire suppression system.

How to Refill Clean Agent

This fire extinguishing clean agent refilling machine can fill new clean agent into fire extinguisher. Here are the clean agent refilling operation steps.

Activate vacuuming pump to vacuum the fire cylinder to be filled.
Set a filling weight on the equipped electronic scale.
Use agent gas filling pump to deliver new clean agent to fire cylinder.
Adjust the pressure reducing valve to obtain the desired pressure of nitrogen and fill it into the fire cylinder ( the step is omissible for carton dioxide fire extinguishers ).
