Gas Booster Pump

Gas Booster Pump Operating Principle

The gas booster, as known as high-pressure gas pump, is gas pressure intensifier. It uses compressed air as power to push the large piston in driving cylinder to drive the small piston in high-pressure cylinder to reciprocate, so as to suction low-pressure gas, compress gas and discharge high-pressure gas. Specifically, gas pump has two sections: driving cylinder with a large piston inside and high-pressure cylinder with a small piston inside, and the two pistons are connected by a shaft. When shop air drives the large piston to reciprocate, the small piston also reciprocates synchronously, so the gas pressure gets higher and higher in the high-pressure cylinder due to compression.

How to Operate Gas Pressure Booster

The discharge pressure of a gas booster pump is equal to the drive air pressure multiplied by the boost ratio. The boost ratio is fixed, which is actually the area ratio of the large and small pistons of the gas pressure booster. So the gas booster pump discharge pressure is directly proportional to the drive air pressure. Therefore, the gas booster discharge pressure can be adjusted and preset easily if adjust the drive air pressure. Just add an air regulator and pressure gauges to the gas pressure pump, a basic gas booster system or gas transfer system is established.

Gas Booster Pump Features

Safe use in explosion proof area
Boost gas up to 160MPa and pressure adjustable
Multiple models optional to meet your needs for pressure and flow
Oil-free compression optional to output food-grade gas
Self-cooling system comes with most models
Automatic stall and standby at any preset pressure
Automatic restart when outlet pressure drop

Gas Pressure Booster Applications

Compress hydrogen, oxygen, CNG and most gases.
Reclaim low-pressure gas and vapor.
Gas pressure test and leak detection.
Boost and fill nitrogen into cylinders, accumulators or gas springs.
Pressure calibration and relief valves setting.
Used in gas booster injection station for plastic physical foaming.
Used in gas power pack to calibrate relief valves or gas lift valves.

The high pressure gas booster can safely compress and boost most industrial gases and air, such as nitrogen booster, air booster and more. For specialty gases, we need to modify or even re-manufacture the gas booster pump according to the properties of the special gas. For example, rematch the appropriate material of seals and wetted parts for compatible with your gas medium, use oil-free compression, degrease all parts, etc. Common non-standard gas boosters include oxygen booster, carbon dioxide booster, hydrogen booster, natural gas booster, ozone booster and more. In order to meet users’ dual needs for different pressures and flows, we provide the following five series and multiple models of standard gas booster pumps for users to choose from. For special gas medium, please contact us for non-standard customization.

GBS Series Gas Booster

GBS series is single acting gas pressure amplifier with features of compact size and low cost. And it is especially suitable for pneumatic test and gas tightness leak test.

Special Models

Some users simply want to boost gas to a low pressure. We have two special models suitable for this special condition. GBS01 can boost gas from 0 bar(g) to max 8bar, while GBS02 can pressurize gas from 0 bar(g) to max 20bar.

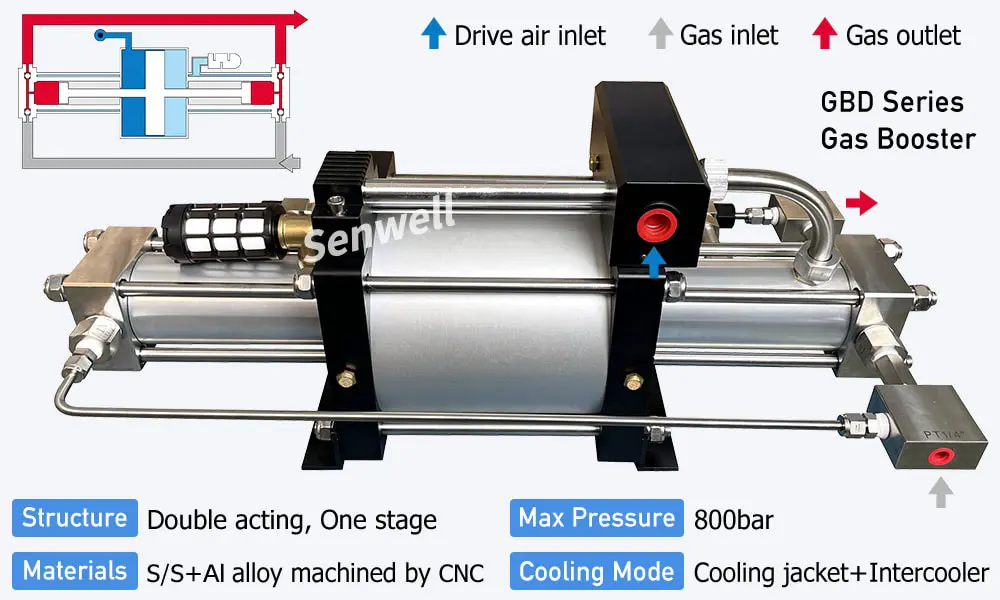

GBD Series Gas Filling Pump

GBD series is double acting gas booster with features of high flow and small pressure pulsation. It can output 2 times flow of GBS series at same given pressure, thus suitable for gas compression and gas delivery.

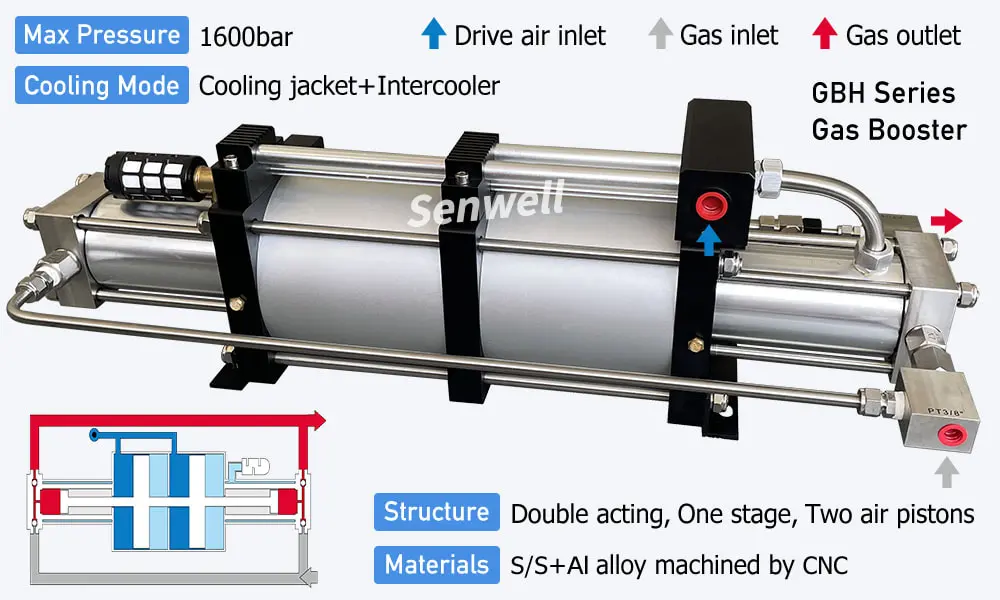

GBH Series Gas Compressor Pump

GBH series is equipped with two air driving pistons based on GBD series with benefit of larger output flow. And it has 1.6 times flow rate of GBD series under the same conditions.

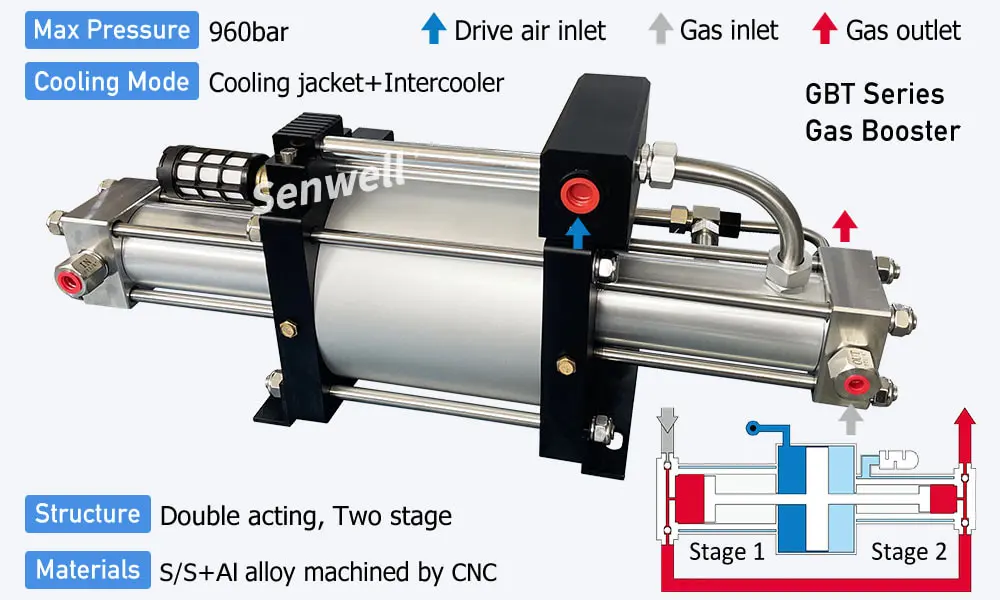

GBT Series Gas Recovery Pump

GBT series is two-stage high pressure gas pump that can effectively suction extremely low pressure gas and then pressurize it. Therefore, it is suitable for gas recovery and gas transfer from tank to tank.

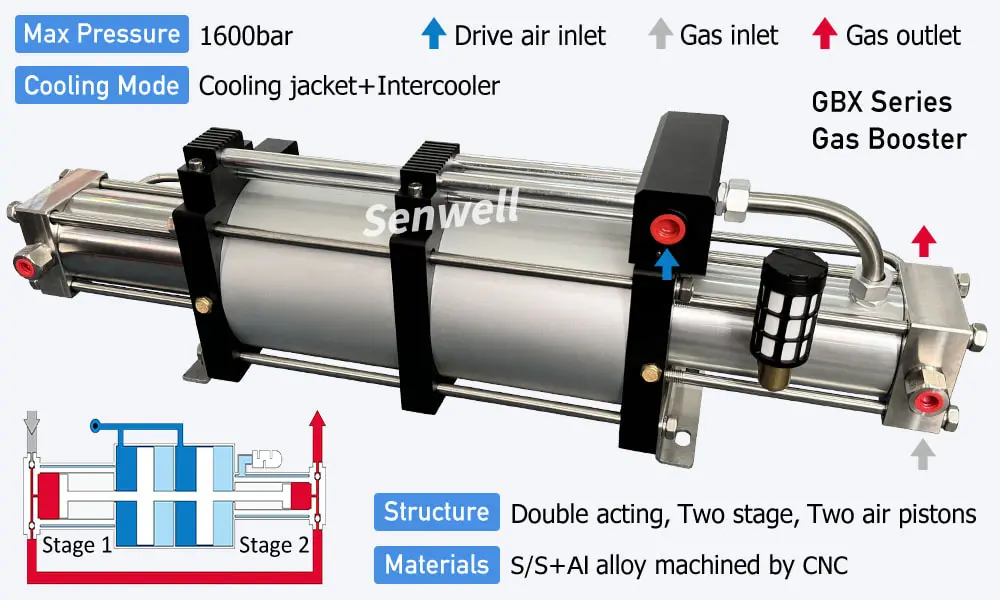

GBX Series Gas Pressure Booster

GBX series gas pressure booster is equipped with two air driving pistons based on GBT series with benefit of larger output flow. And its flow rate is 1.6 times of GBD series under the same conditions.

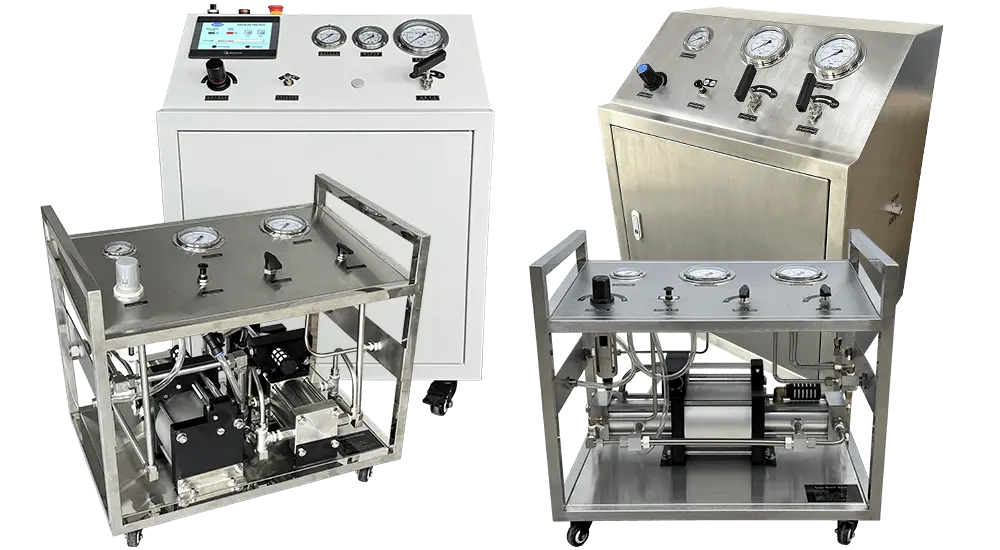

Wanna Build A Gas Booster System ?

Combining gas booster pump with control kit to build a gas booster system can meet different applications and greatly improve convenience of use. You could DIY or use our proven solutions.
